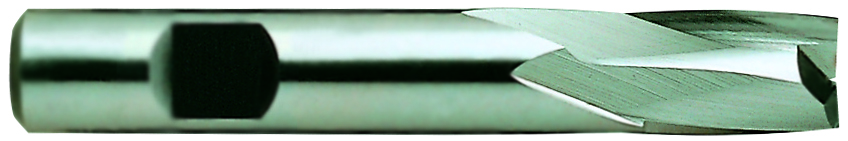

Picture of YG-1 14305CC Dia 3/8 SH 0.3750 LOC 0.5625 OAL2.3125 End Mill Cobalt TiCN Single End Square Sharp General Purpose

YG-1 14305CC Dia 3/8 SH 0.3750 LOC 0.5625 OAL2.3125 End Mill Cobalt TiCN Single End Square Sharp General Purpose

Part Number: YG-14305CC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1201964
Vendor: Sussex Tool and Supply
$25.04
YG-1 End Mill Cobalt TiCN Square Sharp Flutes 2 Single End GENERAL Purpose Cobalt Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.3125 58.74MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Square
Cutter Style Cobalt Keyway
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
