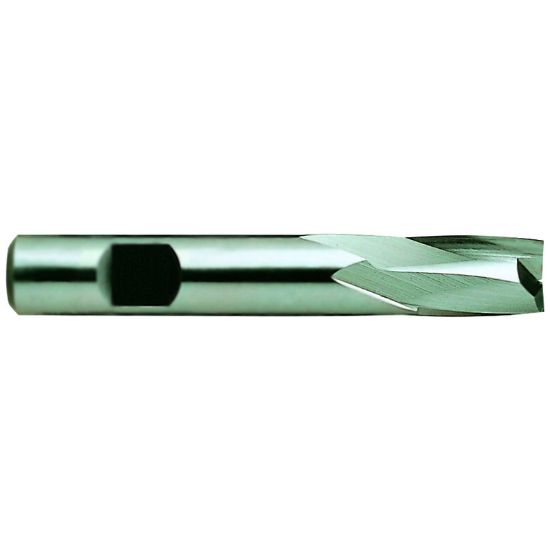

YG-1 14071 DIA 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-14071
Delivery date: 3-5 days
$19.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Application Side Milling, Face Milling
Additional Key Information 4 Standard Helix
Material # Material#18, Material#2, Material#8, Material#15
Additional Key Information 3 Standard Flute
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
End Of Tool Shape Square
Cutter Dia 0.5000 12.70MM - 1/2
Overall Len 3.0000 76.20MM
Helix Angle 30°
Machine Side WELDON0.5000
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Cutter Style HSS Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
