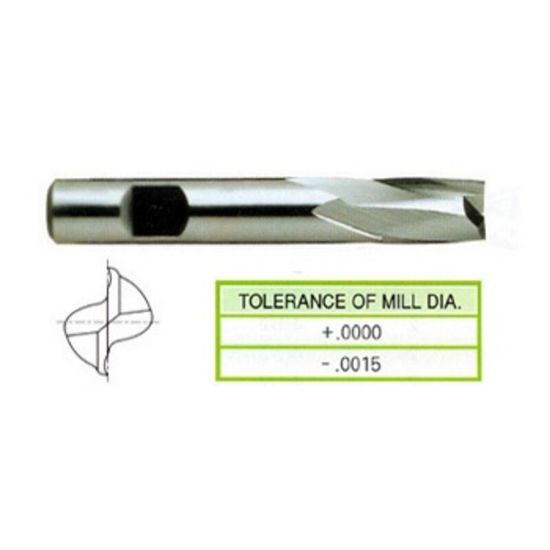

YG-1 14062 DIA 7/16 SH 0.3750 LOC 0.8125 OAL2.50 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-14062
Delivery date: 3-5 days
$19.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling
Package Size 1
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating General Performance
Additional Key Information 4 Standard Helix
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.4375 11.11MM - 7/16
Machine Side WELDON0.3750
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.8125 20.64MM
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
