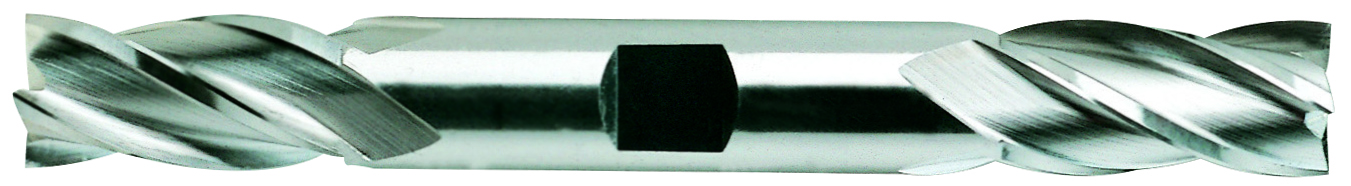

Picture of YG-1 13574 Dia 1/4 Sh 0.3750 Loc 0.6250 Oal3.3750 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp Carbide Endmills

YG-1 13574 Dia 1/4 Sh 0.3750 Loc 0.6250 Oal3.3750 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp Carbide Endmills

Part Number: YG-13574

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1002228
Vendor: Sussex Tool and Supply
$46.69

Carbide end mill with standard flute and helix double end square sharp design. Weldon connection. Made in USA: No. Tool material: Carbide.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.3750

Grades & Coatings

  • Alternate Description: YG-1 Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Double End CARBIDE ENDMILLS

Other Details

  • Brand: YG-1
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for standard toolpost use. Functions as double end square sharp end mill.

Composition

Carbide, uncoated, standard flute, standard helix.

Typical Uses

Used in machine tools with weldon connection. Operates in standard toolpost setups. Suitable for cutting operations with 0.3750 diameter.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) WELDON0.3750
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.3750 85.73MM
Shank Or Pilot Diameter 0.3750 9.52MM - 3/8
Family Group Carbide End Mill
Coolant Thru Non Coolant
Mach Side Connection Size 0.3750 9.53MM - 3/8
Tool Diameter 0.2500 6.35MM - 1/4 - E
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single Or Double End Double End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
