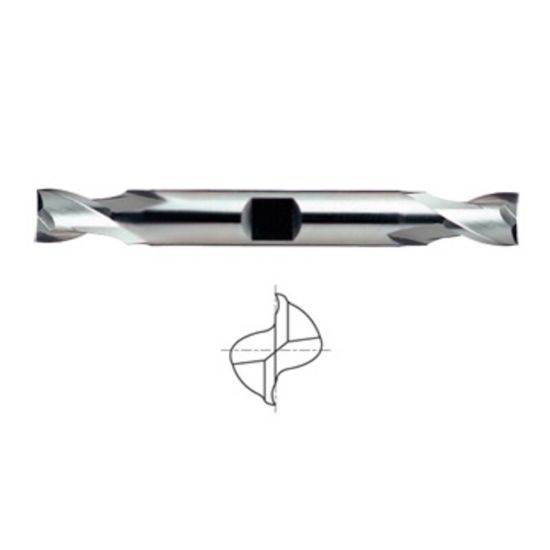

Picture of YG-1 13540PC Dia 1 SH 1.00 LOC 1.8750 OAL6.3750 End Mill Standard Flute High Helix Powder Metal TiCN Double End Square Sharp ASP

YG-1 13540PC Dia 1 SH 1.00 LOC 1.8750 OAL6.3750 End Mill Standard Flute High Helix Powder Metal TiCN Double End Square Sharp ASP

Part Number: YG-13540PC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1212991
Vendor: Sussex Tool and Supply
$284.76
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.0000 25.40MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) WELDON1.0000
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 1.8750 47.63MM
Type of Tool End Mill
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 4
Shipping State ILLINOIS
Family Group ASP
Single Or Double End Double End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 1.0000 25.40MM
Coating TICN
Tool Diameter 1.0000 25.40MM
Coolant Thru Non Coolant
Helix Angle 60°
Made In USA No
