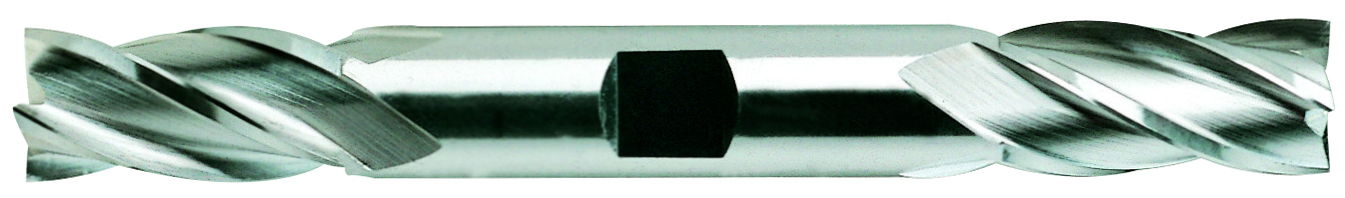

Picture of YG-1 13127 Dia 13/16 Sh 0.8750 Loc 1.8750 Oal6.1250 End Mill Standard Flute Standard Helix HSS Uncoated Double End Square Sharp General Purpose

YG-1 13127 Dia 13/16 Sh 0.8750 Loc 1.8750 Oal6.1250 End Mill Standard Flute Standard Helix HSS Uncoated Double End Square Sharp General Purpose

Part Number: YG-13127

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1003333
Vendor: Sussex Tool and Supply
$76.01

YG-1 13127 HSS end mill with standard flute double end square sharp weldon connection. Machine side connection type is Weldon. Tool material is High Speed Steel. Made in Usa: No. Shipping state: ILLINOIS.

Key Details

Materials & Finish

  • Tool Material: High Speed Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.8750

Grades & Coatings

  • Alternate Description: YG-1 Standard Helix End Mill HSS Uncoated Square Sharp Standard Flute Flutes 4 Double End GENERAL Purpose

Other Details

  • Brand: YG-1
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Cuts material with standard flute and helix. General purpose use for machining. Designed for standard toolpost connection.

Composition

High Speed Steel, Uncoated, Standard Flute, Square Sharp

Typical Uses

End milling, general purpose cutting, standard flute operations

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material High Speed Steel
Machine Side (Toolpost) WELDON0.8750
Machine Side (Toolpost) Connection Type Weldon
Overall Length 6.1250 155.58MM
Shank Or Pilot Diameter 0.8750 22.23MM - 7/8
Family Group General Purpose
Coolant Thru Non Coolant
Mach Side Connection Size 0.8750 22.23MM - 7/8
Tool Diameter 0.8125 20.64MM - 13/16
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.8750 47.63MM
End Of Tool Shape Square
Cutter Style HSS Finisher
Single Or Double End Double End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Center Cutting
