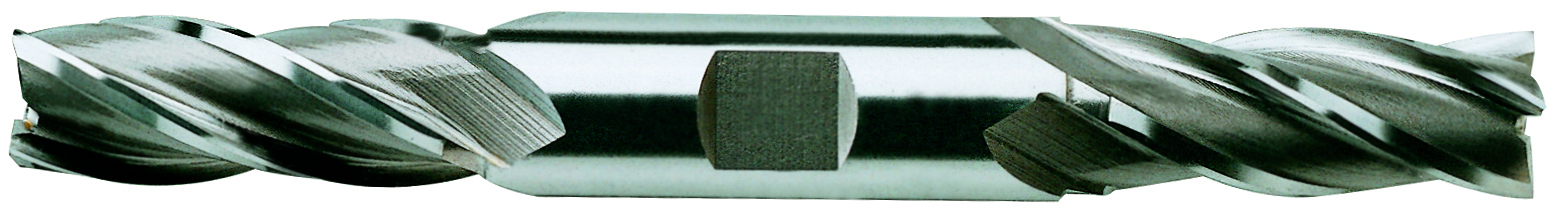

Picture of YG-1 12160 Dia 15/16 Sh 1.00 Loc 1.8750 Oal6.3750 End Mill Standard Flute Standard Helix HSS Uncoated Double End Square Sharp General Purpose

YG-1 12160 Dia 15/16 Sh 1.00 Loc 1.8750 Oal6.3750 End Mill Standard Flute Standard Helix HSS Uncoated Double End Square Sharp General Purpose

Part Number: YG-12160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1002469
Vendor: Sussex Tool and Supply
$87.62

YG-1 end mill with standard flute helix made from high speed steel features double end square sharp design for general purpose cutting. Tool has Weldon connection type 1.0000. Made from high speed steel, it is a standard flute end mill. Type is end mill, uncoated, square sharp, general purpose.

Key Details

Materials & Finish

  • Tool Material: High Speed Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: YG-1 Standard Helix End Mill HSS Uncoated Square Sharp Standard Flute Flutes 4 Double End GENERAL Purpose

Other Details

  • Brand: YG-1
  • Shipping State: ILLINOIS
  • Made In Usa: No
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with standard flute and helix. Designed for general purpose use. Suitable for standard end mill operations.

Composition

High Speed Steel, Uncoated, Standard Flute, Double End Square Sharp.

Typical Uses

General Purpose, Standard Flute, Weldon connection, End Mill operations.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material High Speed Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 6.3750 161.93MM
Shank Or Pilot Diameter 1.0000 25.40MM
Family Group General Purpose
Coolant Thru Non Coolant
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 0.9375 23.81MM - 15/16
Flutes Or Inserts 4
Type of Tool End Mill
Length Type Standard
Performance Rating General Performance
Length Of Cut 1.8750 47.63MM
End Of Tool Shape Square
Cutter Style HSS Finisher
Single Or Double End Double End
Inch Or Metric Inch
Helix Angle 30°
Center Cutting Non Center Cutting
