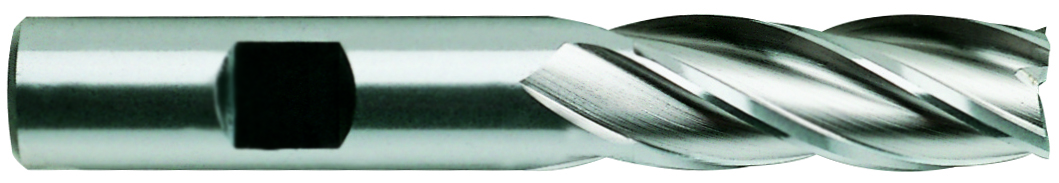

Picture of YG-1 04088HC Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.7500 End Mill Standard Flute Standard Helix HSS TiCN Single End Square Sharp General Purpose

YG-1 04088HC Dia 5/8 SH 0.6250 LOC 1.6250 OAL3.7500 End Mill Standard Flute Standard Helix HSS TiCN Single End Square Sharp General Purpose

Part Number: YG-04088HC
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1204322
Vendor: Sussex Tool and Supply
$54.23

Description

YG-1 Standard Helix End Mill HSS TiCN Square Sharp Standard Flute Flutes 6 Single End GENERAL Purpose High Speed Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style HSS Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 6
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.6250 41.28MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material High Speed Steel
Cutting Edge Mat HSS
Coating TICN
