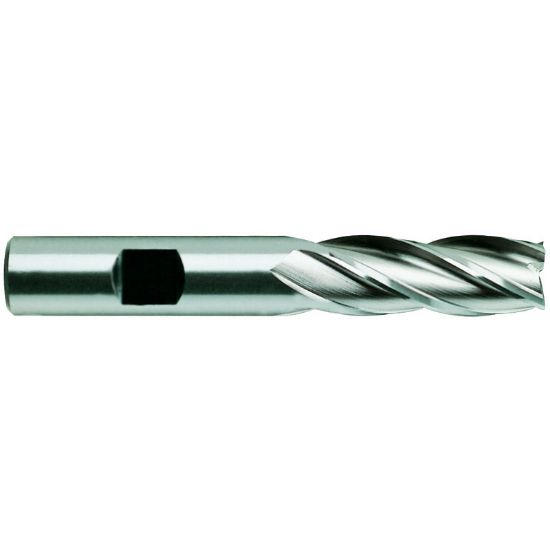

YG-1 04055HN DIA 3/8 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp GENERAL Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04055HN
Delivery date: 3-5 days
$24.91
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Shipping State Illinois
Material # Material#18, Material#2, Material#8, Material#15
Application Face Milling, Side Milling
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Coating TiN
Performance Rating General Performance
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Overall Len 2.5000 63.50MM
Cutter Style HSS Finisher
Single/Double End Single End
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Machine Side WELDON0.3750
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Only registered users can write reviews
