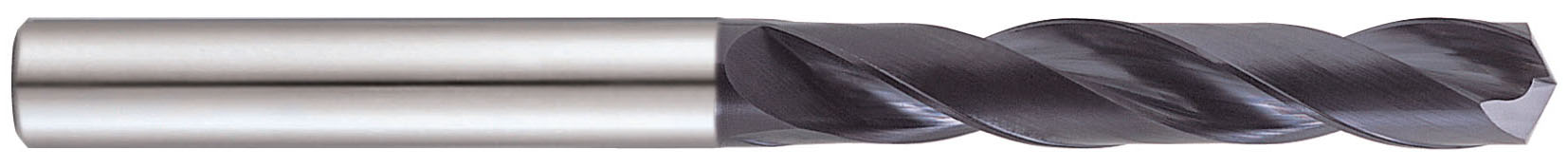

YG-1 0371ATF 37/64 Carbide Dream Drill W/O Coolant HOLES (3XD)

Part Number: YG10371ATF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1147322
$162.14
YG-1 0371ATF Carbide Drill 37/64 CARBIDE DREAM DRILL W/O COOLANT HOLES (3XD) Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.5781 14.68MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5781 14.68MM - 37/64
Flutes/Inserts 2
Tool Dia 0.5781 14.68MM - 37/64
Type Of Tool Drill
Included Angle 140°
Flute Length 3.5780 90.88MM
Cut Dia Min 0.5781 14.68MM - 37/64
Dia Deep 3.0x Dia
