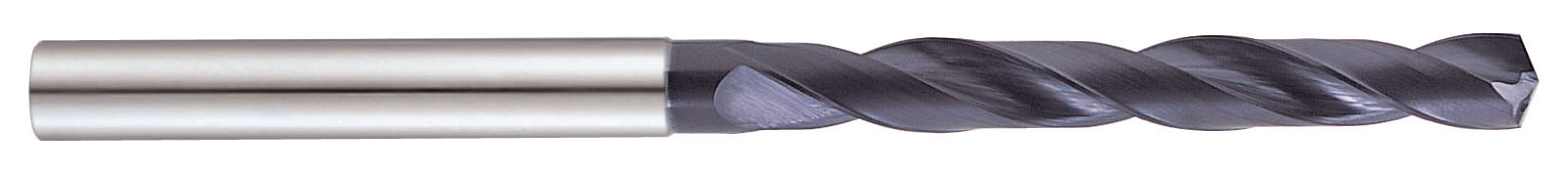

YG-1 0311CTF 31/64 Carbide Dream Drill W/ Coolant HOLES(5XD)

Part Number: YG10311CTF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1145532
$249.27
YG-1 0311CTF Carbide Drill 31/64 CARBIDE DREAM DRILL W/ COOLANT HOLES(5XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.4844 12.30MM
Overall Length 6.5781 167.08MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4844 12.30MM - 31/64
Flutes/Inserts 2
Tool Dia 0.4844 12.30MM - 31/64
Type Of Tool Drill
Included Angle 140°
Flute Length 3.9380 100.03MM
Cut Dia Min 0.4844 12.30MM - 31/64
Dia Deep 5.0x Dia
