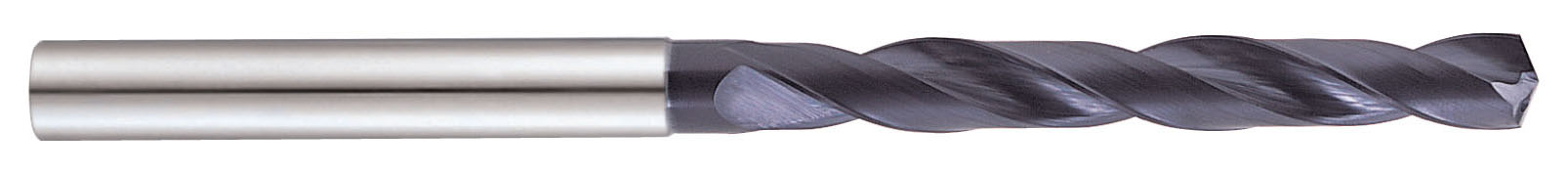

YG-1 0271CTF 27/64 Carbide Dream Drill W/ Coolant HOLES(5XD)

Part Number: YG10271CTF

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1145520
$246.87

Description

YG-1 0271CTF Carbide Drill 27/64 CARBIDE DREAM DRILL W/ COOLANT HOLES(5XD) Coolant Thru TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.4219 10.72MM
Overall Length 5.8750 149.23MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4219 10.72MM - 27/64
Flutes/Inserts 2
Tool Dia 0.4219 10.72MM - 27/64
Type Of Tool Drill
Included Angle 140°
Flute Length 3.4690 88.11MM
Cut Dia Min 0.4219 10.72MM - 27/64
Dia Deep 5.0x Dia
