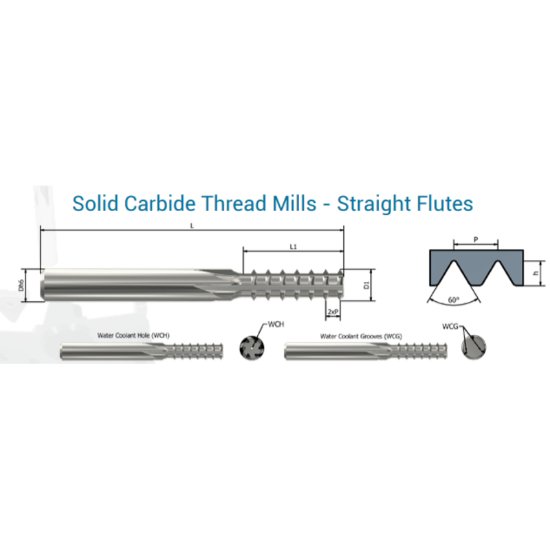

Picture of Xactform 78910 Carbide Thread Mill 3/4" 10.00TPI Int / Ext 0.470 Dia 4.530 OAL 5 Flute

Xactform 78910 Carbide Thread Mill 3/4" 10.00TPI Int / Ext 0.470 Dia 4.530 OAL 5 Flute

Part Number: XAC78910
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295791
Vendor: Sussex Tool and Supply
$515.94

Description

XACTFORM Mill Thread Carbide TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
General Information
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Thread Type NC/UNC
Inter/Extern Int / Ext
Dimensions & Sizing
Overall Length 4.5300 115.06MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.4700 11.94MM
Length Of Cut 2.4000 60.96MM
Thread Pitch 10.00TPI
Thread Size 3/4"
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
Grade K27C
