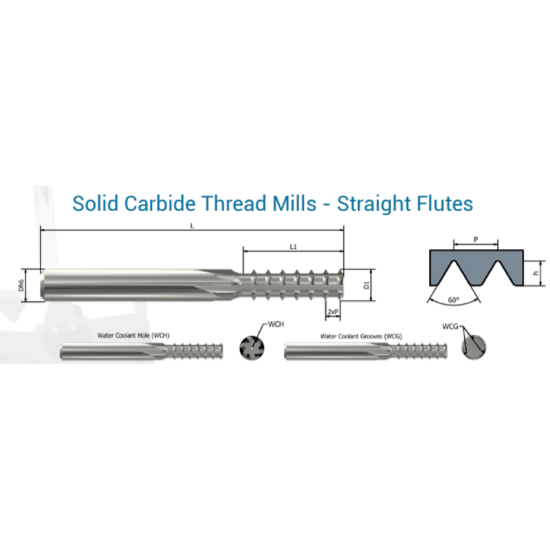

XACTFORM 78800 Carbide Thread Mill #4 40.00TPI Int / Ext 0.080 Dia 1.500 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC78800
Delivery date: 3-5 days
$172.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Performance Rating High Performance
Package Size 1
Additional Key Information 1 Mill Thread
Sold by Pieces 1
Shipping State Florida
Coating TiAlN
Grade K27C
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Dia 0.0800 2.03MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Thread Size No.4
Machine Side CYLINDRICAL0.1250
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Pitch 40.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Automotive Yes
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
