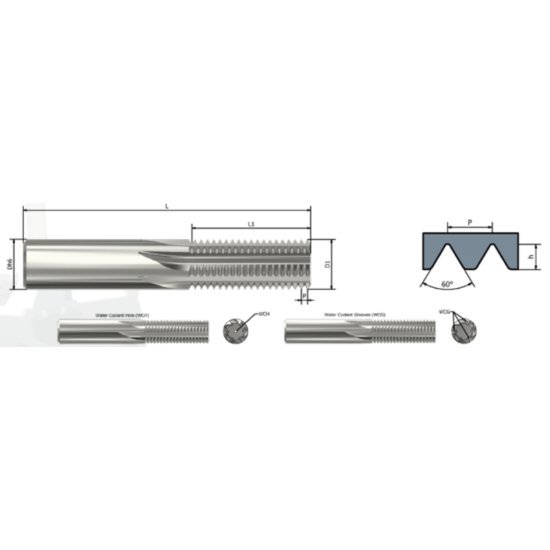

Picture of Xactform 78422 Carbide Thread Mill M48 5.00mm Int / Ext 0.745 Dia 4.100 OAL 6 Flute

Xactform 78422 Carbide Thread Mill M48 5.00mm Int / Ext 0.745 Dia 4.100 OAL 6 Flute

Part Number: XAC78422
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295705
Vendor: Sussex Tool and Supply
$649.24

Description

XACTFORM Mill Thread Carbide TIALN Steel TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
General Information
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Inter/Extern Int / Ext
Dimensions & Sizing
Overall Length 4.1000 104.14MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 6
Tool Dia 0.7450 18.92MM
Length Of Cut 1.5750 40.01MM
Thread Pitch 5.00MM
Thread Size M48
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiAlN
Grade K27C
