XACTFORM 78415 Carbide Thread Mill M12 1.75MM Int / Ext 0.310 Dia 2.480 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC78415
Delivery date: 3-5 days
$270.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Mill Thread
Performance Rating High Performance
Coating TiAlN
Grade K27C
Application Thread Milling
Package Size 1
Sold by Pieces 1
Shipping State Florida
Uncategorized
Made In USA No

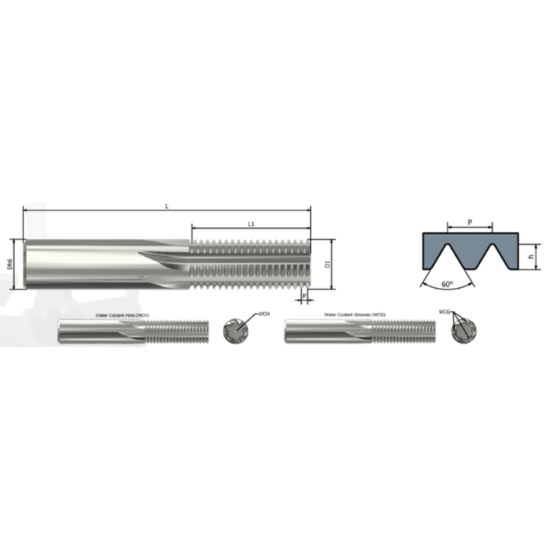

Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Pitch 1.75MM
Thread Size M12
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.3100 7.87MM
Length Of Cut 0.7580 19.25MM
Shank/Pilot Dia 0.3120 7.92MM
Overall Len 2.4800 62.99MM
Cutting & Machining Properties
Inter/Extern Int / Ext
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
Medical Yes
Energy Yes
