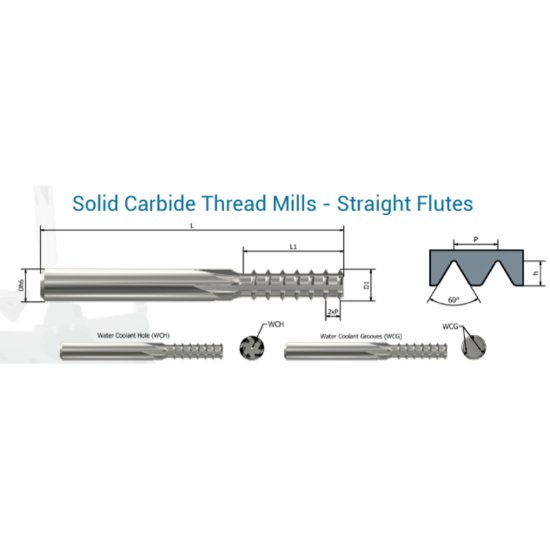

Picture of Xactform 70819 Carbide Thread Mill 5/8" 18.00TPI Int / Ext 0.437 Dia 3.940 OAL 5 Flute

Xactform 70819 Carbide Thread Mill 5/8" 18.00TPI Int / Ext 0.437 Dia 3.940 OAL 5 Flute

Part Number: XAC70819
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295719
Vendor: Sussex Tool and Supply
$515.94

Description

XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Inter/Extern Int / Ext
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.4370 11.10MM
Length Of Cut 1.4440 36.68MM
Thread Pitch 18.00TPI
Thread Size 5/8"
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
Grade K20
