XACTFORM 70419 Carbide Thread Mill M24 3.00MM Int / Ext 0.620 Dia 3.620 OAL 6 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC70419
Delivery date: 3-5 days
$570.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Grade K20
Package Size 1
Additional Key Information 1 Mill Thread
Performance Rating High Performance
Coating TiN
Application Thread Milling
Sold by Pieces 1
Shipping State Florida
Uncategorized
Made In USA No

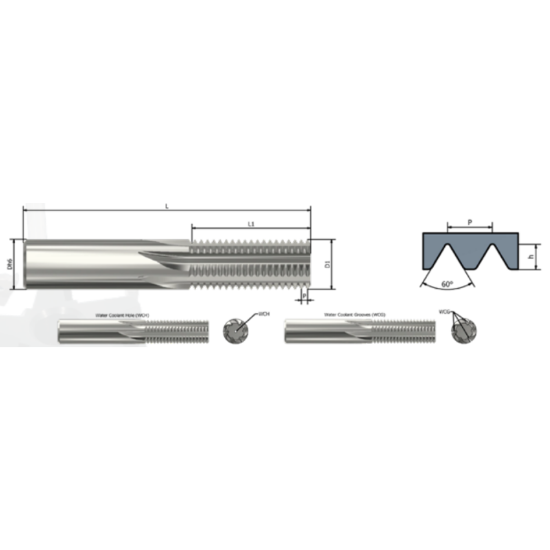

Dimensional Specifications
Cutter Dia 0.6200 15.75MM
Overall Len 3.6200 91.95MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side CYLINDRICAL0.6250
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.4170 35.99MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Thread Size M24
Thread Pitch 3.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
