XACTFORM 40210 Carbide Thread Mill #8"32 32.00TPI Internal 0.120 Dia 1.850 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC40210
Delivery date: 3-5 days
$179.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Additional Key Information 1 Mill Thread
Performance Rating High Performance
Sold by Pieces 1
Grade K20C
Shipping State Florida
Coating TiN
Application Thread Milling
Uncategorized
Made In USA No

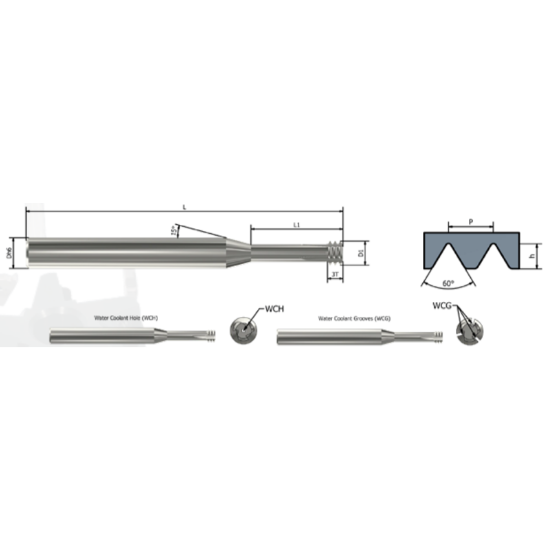

Dimensional Specifications
Machine Side Connection Size 0.1875 4.75MM
Machine Side CYLINDRICAL0.1875
Shank/Pilot Dia 0.1870 4.75MM
Thread Pitch 32.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.1200 3.05MM - #31
Neck Length 0.4960 12.60MM
Flutes/Inserts 3
Thread Size No.8
Overall Len 1.8500 46.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Internal
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
