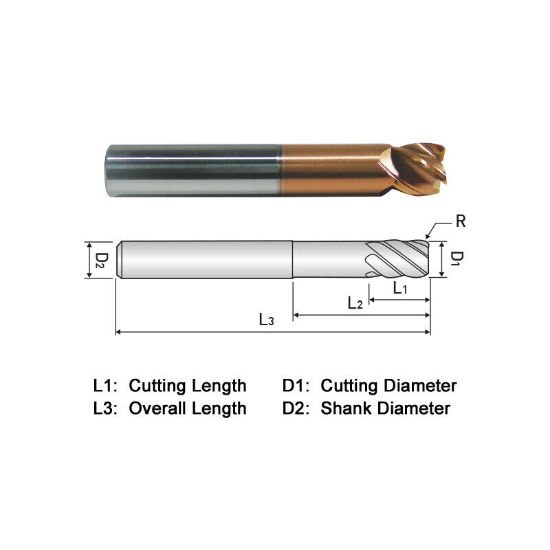

Picture of Widin ZS204A024080L Dia 3/8 SH 0.3750 LOC 0.4375 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0800 2.03mm Z-Star

Widin ZS204A024080L Dia 3/8 SH 0.3750 LOC 0.4375 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0800 2.03mm Z-Star

Part Number: WIDZS204A024080L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1228004
Vendor: Sussex Tool and Supply
$77.88
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0800 2.03MM Standard Flute Flutes 4 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.4375 11.11MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0800 2.03MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 2.0000 50.80MM
