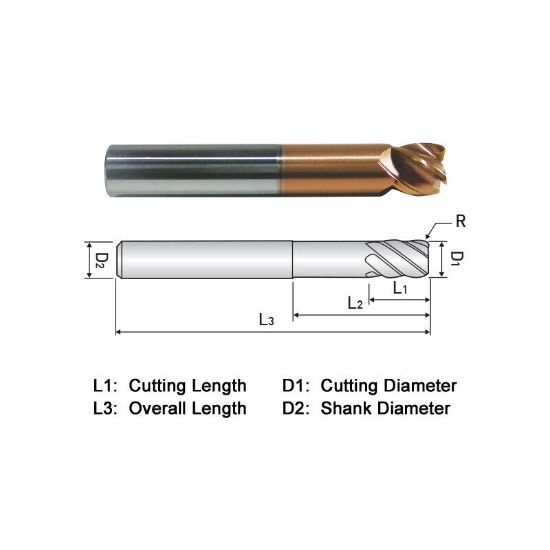

Widin ZS204A012015 Dia 3/16 SH 0.1875 LOC 0.2500 OAL 2.00 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm Z-Star

Part Number: WIDZS204A012015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$40.97
SKU: 1227996

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0150 0.38MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.2500 6.35MM
Neck Length 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Helix Angle 38
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
