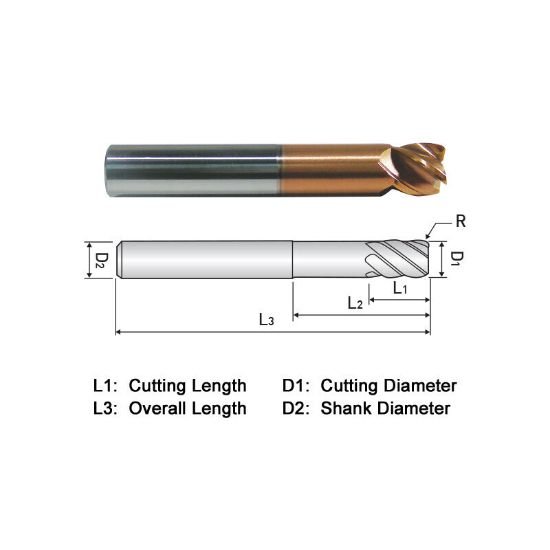

Widin ZS204A008010 Dia 1/8 SH 0.1250 LOC 0.1563 OAL 1.50 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm Z-Star

Part Number: WIDZS204A008010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$37.63
SKU: 1227993

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0100 0.25MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.1563 3.97MM
Neck Length 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0100 0.25MM
Helix Angle 38
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
