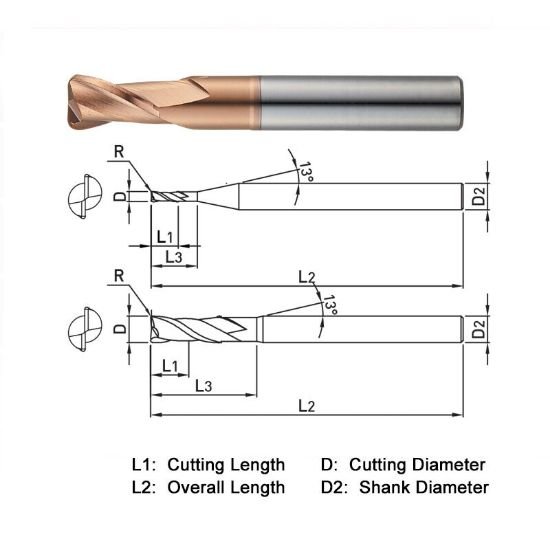

Widin ZR7020150215 Dia 1.50mm SH 0.2362 LOC 0.0984 OAL 1.968 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0079 0.20mm Z-Star

Part Number: WIDZR7020150215
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$41.14
SKU: 1227499

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0079 0.20MM 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0591 1.50MM
Length Of Cut 0.0984 2.50MM
Neck Length 0.5906 15.00MM
Geometry & Angles
Corner Radius 0.0079 0.20MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
