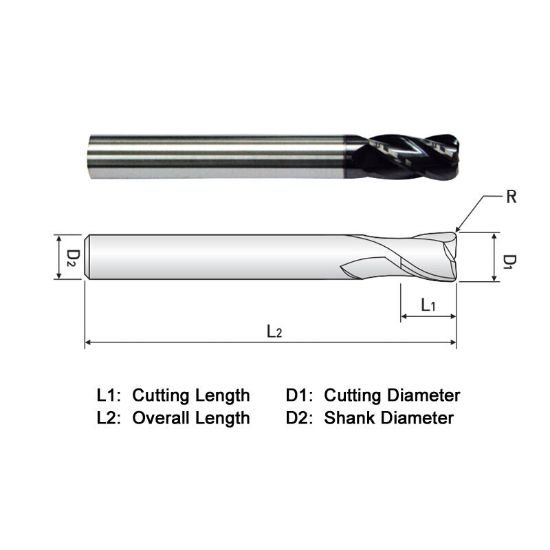

Picture of Widin ZR504A01230 Dia 3/16 SH 0.2500 LOC 0.3750 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Z-ClassIC

Widin ZR504A01230 Dia 3/16 SH 0.2500 LOC 0.3750 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Z-ClassIC

Part Number: WIDZR504A01230

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227228
Vendor: Sussex Tool and Supply
$23.90
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 4 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
