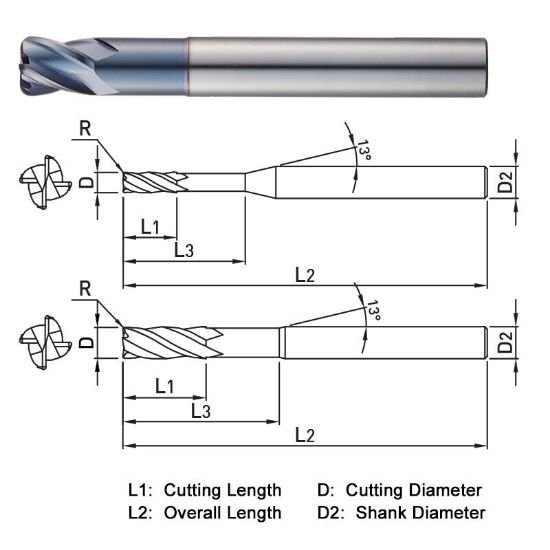

Picture of Widin ZR5040405 Dia 4mm SH 0.2362 LOC 0.2362 OAL2.1654 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm Z-ClassIC

Widin ZR5040405 Dia 4mm SH 0.2362 LOC 0.2362 OAL2.1654 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm Z-ClassIC

Part Number: WIDZR5040405

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227206
Vendor: Sussex Tool and Supply
$25.65
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 4 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.1654 55.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.1575 4.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.2362 6.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 0.3937 10.00MM
