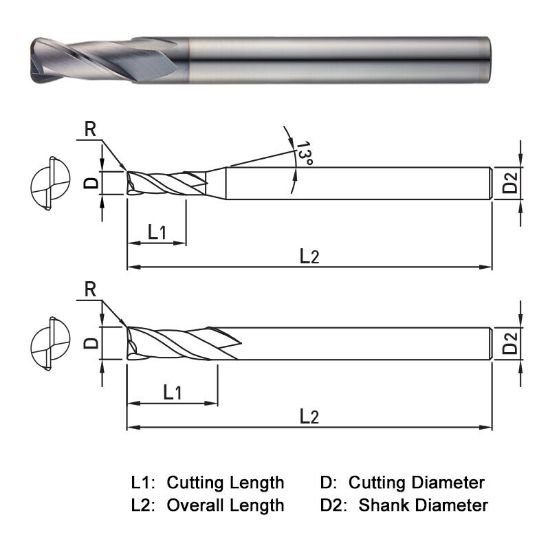

Picture of Widin ZR3220402 Dia 4mm SH 0.2362 LOC 0.4331 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Corner Radius0.0079 0.20mm THUNDER

Widin ZR3220402 Dia 4mm SH 0.2362 LOC 0.4331 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Corner Radius0.0079 0.20mm THUNDER

Part Number: WIDZR3220402
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$29.48
SKU: 1220082

Description

WIDIN End Mill Carbide TiAlN Corner Radius 0.0079 0.20MM 2 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Length Of Cut 0.4331 11.00MM
Geometry & Angles
Corner Radius 0.0079 0.20MM
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
