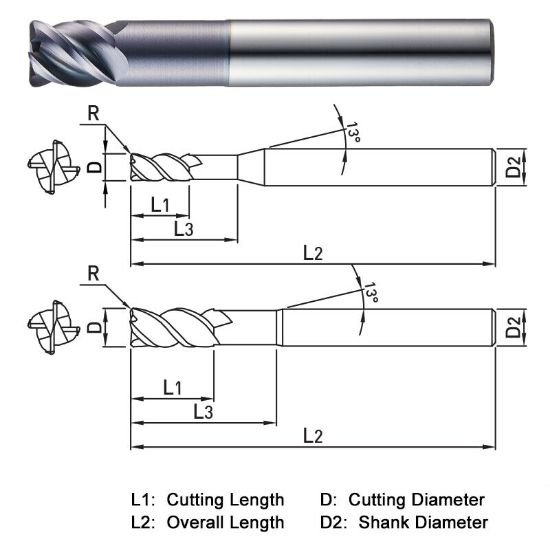

Picture of Widin ZR3141250-150-08 Dia 12mm SH 0.4724 LOC 1.4961 OAL5.9055 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0315 0.80mm THUNDER

Widin ZR3141250-150-08 Dia 12mm SH 0.4724 LOC 1.4961 OAL5.9055 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0315 0.80mm THUNDER

Part Number: WIDZR3141250-150-08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1220078
Vendor: Sussex Tool and Supply
$225.71

Description

WIDIN High Helix End Mill Carbide DLC Corner Radius 0.0315 0.80MM Standard Flute Flutes 4 Single End THUNDER Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Of Cut 1.4961 38.00MM
Neck Length 1.9685 50.00MM
Geometry & Angles
Corner Radius 0.0315 0.80MM
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating DLC
