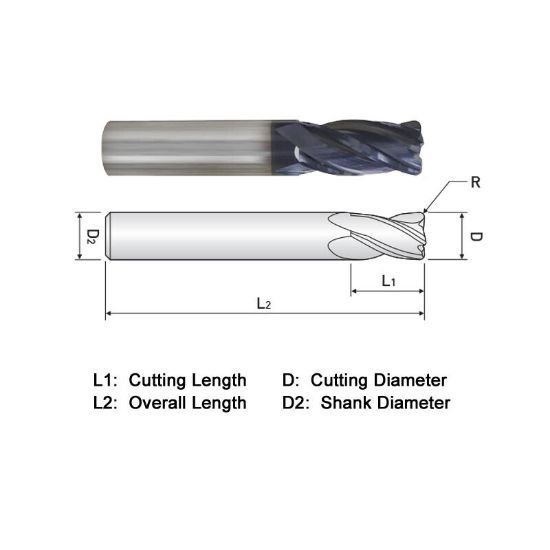

Picture of Widin ZR304A008010 Dia 1/8 SH 0.1250 LOC 0.50 OAL 2.00 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm General PURPOSE

Widin ZR304A008010 Dia 1/8 SH 0.1250 LOC 0.50 OAL 2.00 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm General PURPOSE

Part Number: WIDZR304A008010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$5.51
SKU: 1219009

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0100 0.25MM 4 Flute Single End General Purpose
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Geometry & Angles
Corner Radius 0.0100 0.25MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
