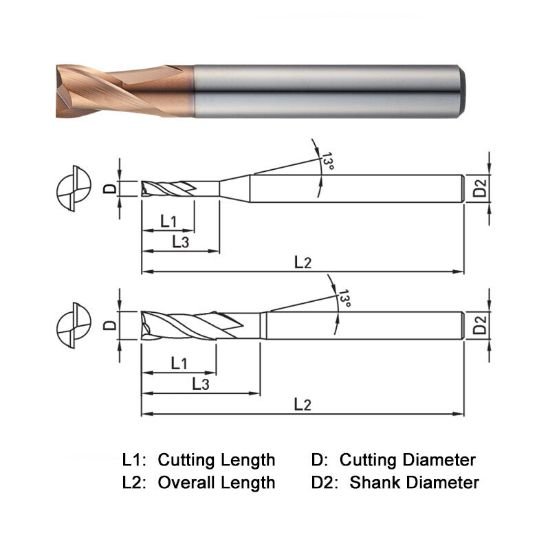

Picture of Widin ZE752080 Dia 8mm SH 0.3150 LOC 0.3543 OAL2.3622 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0020 0.05mm Z-Star

Widin ZE752080 Dia 8mm SH 0.3150 LOC 0.3543 OAL2.3622 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0020 0.05mm Z-Star

Part Number: WIDZE752080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227036
Vendor: Sussex Tool and Supply
$0.00
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0020 0.05MM Standard Flute Flutes 2 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.3622 60.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.3543 9.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0020 0.05MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 0.7087 18.00MM
