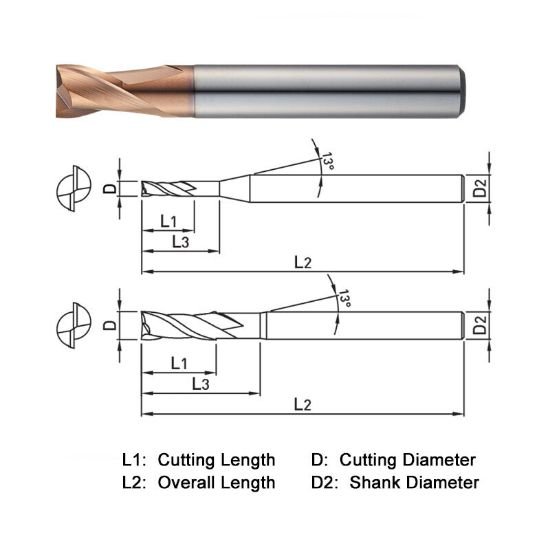

Picture of Widin ZE702020 Dia 2mm SH 0.2362 LOC 0.1181 OAL 1.5748 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0039 0.10mm Z-Star

Widin ZE702020 Dia 2mm SH 0.2362 LOC 0.1181 OAL 1.5748 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0039 0.10mm Z-Star

Part Number: WIDZE702020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$31.13
SKU: 1226901

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0039 0.10MM 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0787 2.00MM
Length Of Cut 0.1181 3.00MM
Neck Length 0.2362 6.00MM
Geometry & Angles
Corner Radius 0.0039 0.10MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
