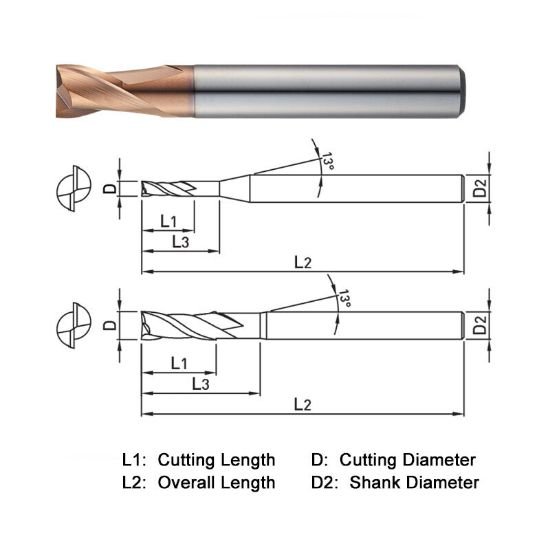

Widin ZE702005 Dia 0.50mm SH 0.1575 LOC 0.0394 OAL 1.574 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0020 0.05mm Z-Star

Part Number: WIDZE702005
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$38.27
SKU: 1226893

Description

WIDIN End Mill Carbide AlTiN Corner Radius 0.0020 0.05MM 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0197 0.50MM
Length Of Cut 0.0394 1.00MM
Geometry & Angles
Corner Radius 0.0020 0.05MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
