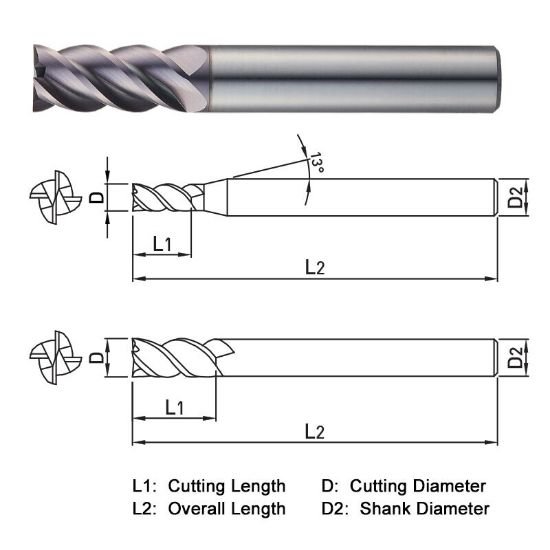

Picture of Widin ZE514A0040156-3 Dia 1/16 SH 0.1875 LOC 0.1250 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Widin ZE514A0040156-3 Dia 1/16 SH 0.1875 LOC 0.1250 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Part Number: WIDZE514A0040156-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218509
Vendor: Sussex Tool and Supply
$46.38
WIDIN Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.0625 1.59MM - 1/16
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.1250 3.18MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.5620 39.67MM
