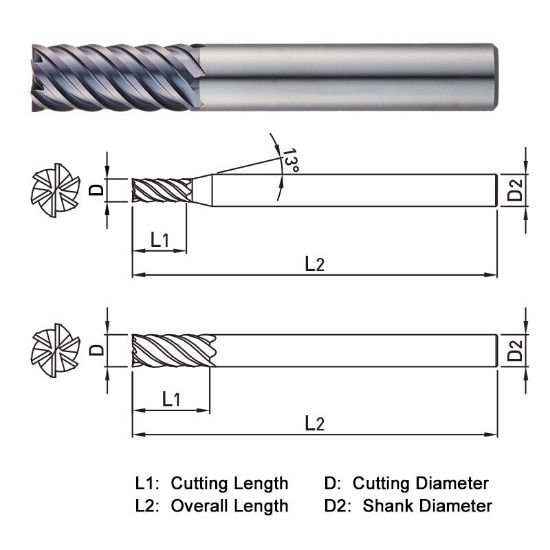

Picture of Widin ZE506201 Dia 20mm SH 0.7874 LOC 2.9921 OAL5.9055 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin ZE506201 Dia 20mm SH 0.7874 LOC 2.9921 OAL5.9055 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDZE506201
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1226876
Vendor: Sussex Tool and Supply
$553.18

Description

WIDIN High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 6 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 6
Tool Dia 0.7874 20.00MM
Length Of Cut 2.9921 76.00MM
Geometry & Angles
Helix Angle 50
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
