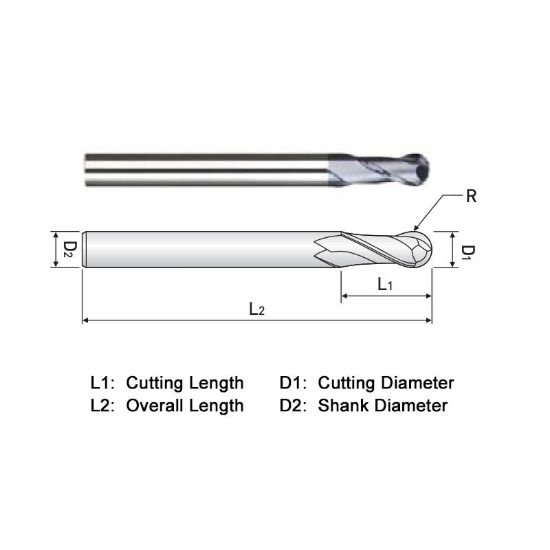

Picture of Widin ZB302016LS Dia 1/4 SH 0.2500 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Widin ZB302016LS Dia 1/4 SH 0.2500 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Part Number: WIDZB302016LS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218932
Vendor: Sussex Tool and Supply
$41.04
WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
