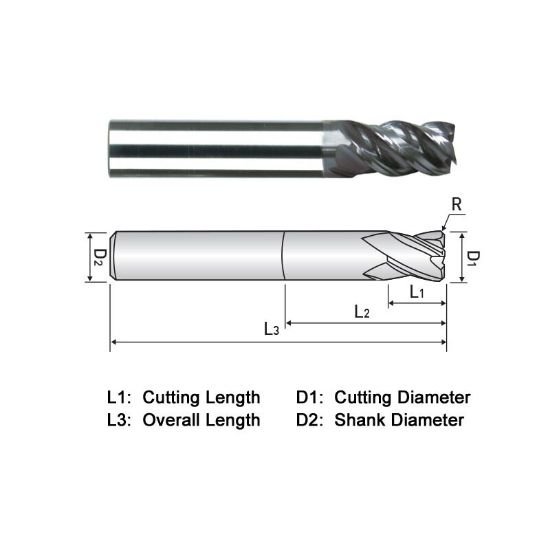

Picture of Widin XXR504A012015 Dia 3/16 SH 0.1875 LOC 0.3750 OAL 2.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0150 0.38mm XX-Star

Widin XXR504A012015 Dia 3/16 SH 0.1875 LOC 0.3750 OAL 2.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0150 0.38mm XX-Star

Part Number: WIDXXR504A012015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.07
SKU: 1228729

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0150 0.38MM 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.3750 9.53MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
