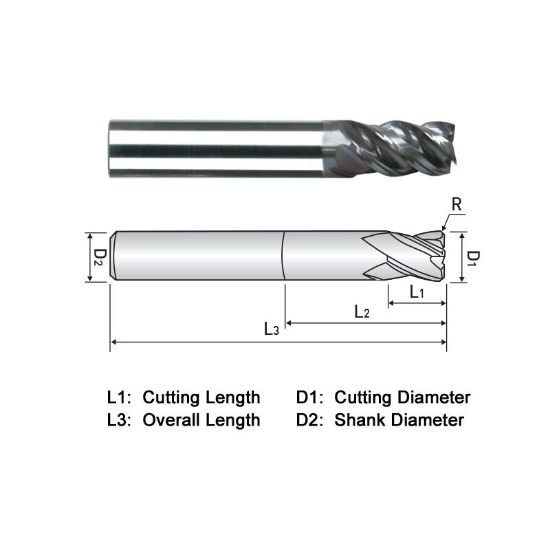

Picture of Widin XXR504A010010 Dia 5/32 SH 0.1875 LOC 0.3125 OAL2.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm XX Star

Widin XXR504A010010 Dia 5/32 SH 0.1875 LOC 0.3125 OAL2.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm XX Star

Part Number: WIDXXR504A010010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1226573
Vendor: Sussex Tool and Supply
$17.94
WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0100 0.25MM Standard Flute Flutes 4 Single End XX STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating ALTIN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1563 3.97MM - 5/32
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3125 7.94MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
