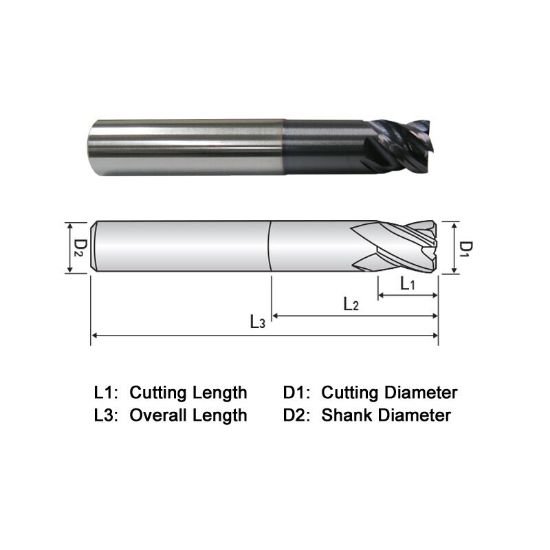

Picture of Widin XXE534A048 Dia 3/4 SH 0.7500 LOC 1.00 OAL 4.2500 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Widin XXE534A048 Dia 3/4 SH 0.7500 LOC 1.00 OAL 4.2500 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Part Number: WIDXXE534A048
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$241.43
SKU: 1226561

Description

WIDIN Variable Helix End Mill Carbide TiAlN Square Sharp 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.0000 25.40MM
Neck Length 2.2500 57.15MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
