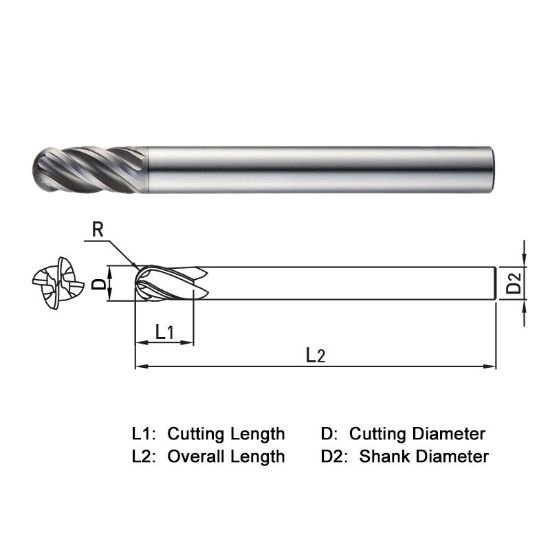

Picture of Widin XXB504080 Dia 8mm SH 0.3150 LOC 0.5906 OAL 3.9370 End Mill Variable Helix Carbide TiAlN Single End Ball NoseBall XX-Star

Widin XXB504080 Dia 8mm SH 0.3150 LOC 0.5906 OAL 3.9370 End Mill Variable Helix Carbide TiAlN Single End Ball NoseBall XX-Star

Part Number: WIDXXB504080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$49.61
SKU: 1226516

Description

WIDIN Variable Helix End Mill Carbide TiAlN Ball Nose 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.5906 15.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
