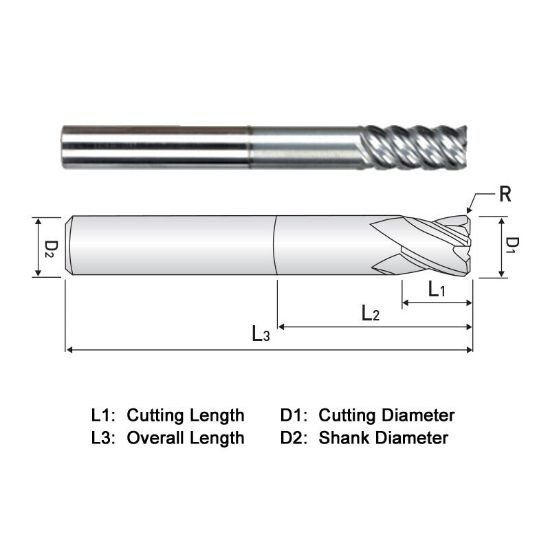

Picture of Widin XR535A064045 Dia 1 SH 1.00 LOC 3.00 OAL 6.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0450 1.14mm X-Star

Widin XR535A064045 Dia 1 SH 1.00 LOC 3.00 OAL 6.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0450 1.14mm X-Star

Part Number: WIDXR535A064045
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$411.51
SKU: 1226512

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0450 1.14MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Length Of Cut 3.0000 76.20MM
Neck Length 4.0000 101.60MM
Geometry & Angles
Corner Radius 0.0450 1.14MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
