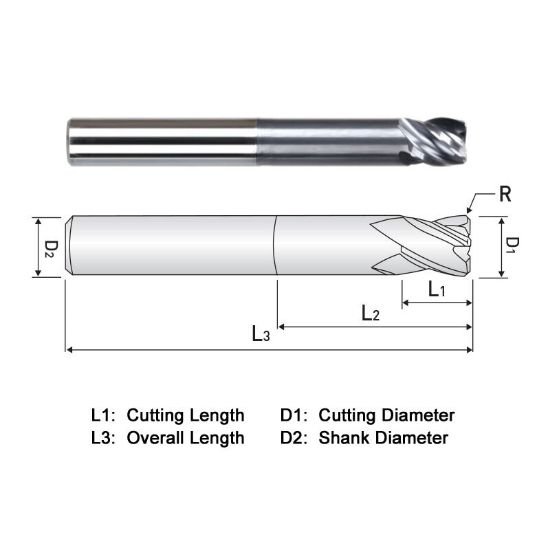

Widin XR525A016030 Dia 1/4 SH 0.2500 LOC 0.7500 OAL 4.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0300 0.76mm X-Star

Part Number: WIDXR525A016030
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$37.24
SKU: 1226463

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0300 0.76MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.7500 19.05MM
Neck Length 2.1250 53.98MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
