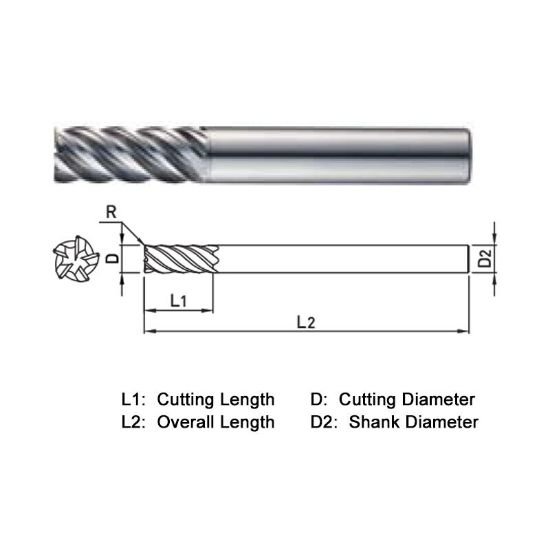

Picture of Widin XR50525100 Dia 25mm SH 0.9843 LOC 1.4961 OAL 4.0945 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Widin XR50525100 Dia 25mm SH 0.9843 LOC 1.4961 OAL 4.0945 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm X-Star

Part Number: WIDXR50525100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$494.19
SKU: 1226267

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0394 1.00MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0945 104.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 5
Tool Dia 0.9844 25.00MM - 63/64
Length Of Cut 1.4961 38.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
