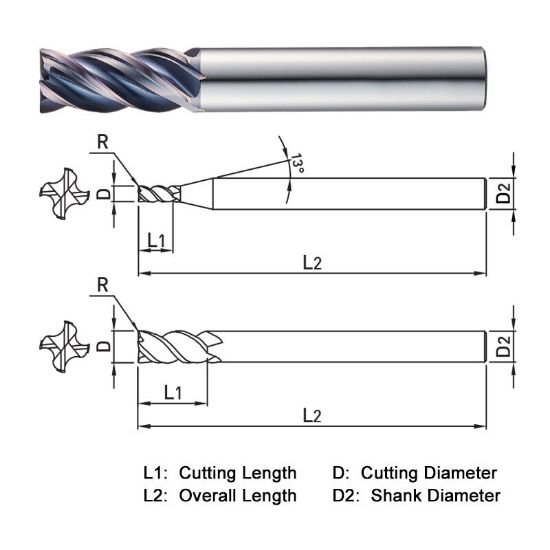

Widin XR5040602SP Dia 6mm SH 0.2362 LOC 0.5118 OAL 1.9685 End Mill Variable Helix Carbide AlTiN Single End Corner Radius0.0079 0.20mm X-Star

Part Number: WIDXR5040602SP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$30.76
SKU: 1226203

Description

WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0079 0.20MM 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.5118 13.00MM
Neck Length 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.0079 0.20MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
