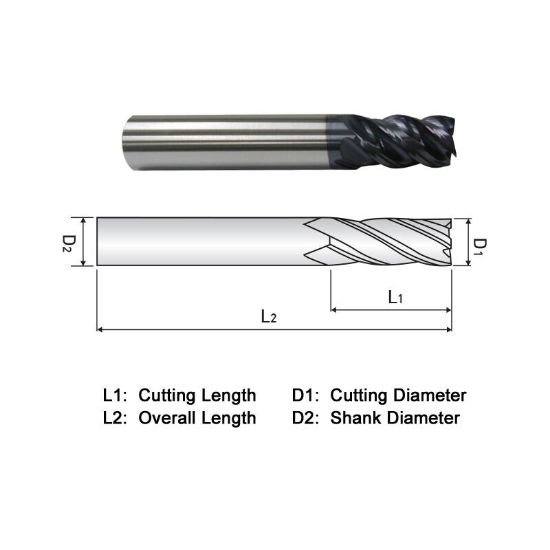

Picture of Widin XR404A040F Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm X-Star

Widin XR404A040F Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm X-Star

Part Number: WIDXR404A040F
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1226195
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0400 1.02MM Standard Flute Flutes 4 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0400 1.02MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
