Widin XE524160 Dia 16mm SH 0.6299 LOC 0.6693 OAL 4.5276 End Mill Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE524160
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$224.13
SKU: 1226180

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting

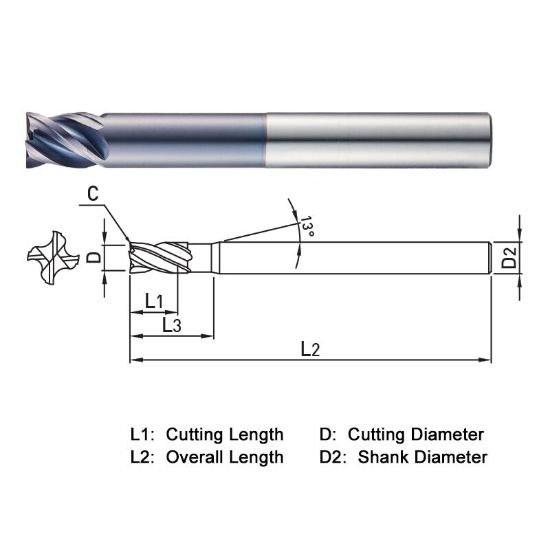

Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.6299 16.00MM
Length Of Cut 0.6693 17.00MM
Neck Length 2.5984 66.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
