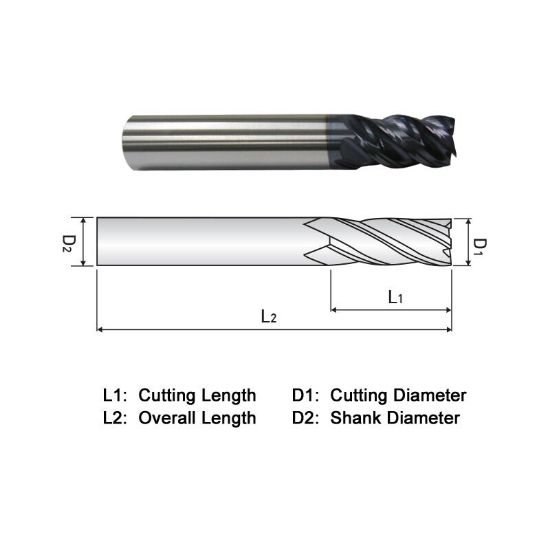

Picture of Widin XE514160 Dia 16mm SH 0.6299 LOC 0.6693 OAL3.5433 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Widin XE514160 Dia 16mm SH 0.6299 LOC 0.6693 OAL3.5433 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Square Sharp X-Star

Part Number: WIDXE514160
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$164.05
SKU: 1226155

Description

WIDIN Variable Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.6299 16.00MM
Length Of Cut 0.6693 17.00MM
Neck Length 1.6929 43.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
