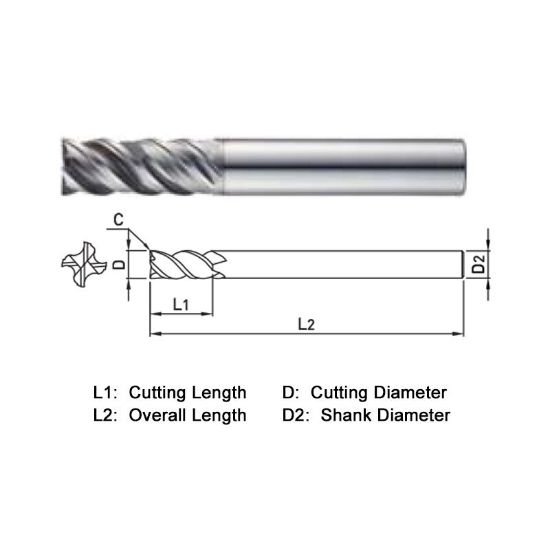

Picture of Widin XCC504200 Dia 20mm SH 0.7874 LOC 1.7717 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End 45.0° Chamfer X-Star

Widin XCC504200 Dia 20mm SH 0.7874 LOC 1.7717 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End 45.0° Chamfer X-Star

Part Number: WIDXCC504200
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$260.70
SKU: 1226029

Description

WIDIN High Helix End Mill Carbide TiAlN 45.0° Chamfer 4 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Of Cut 1.7717 45.00MM
Geometry & Angles
Helix Angle 48
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
