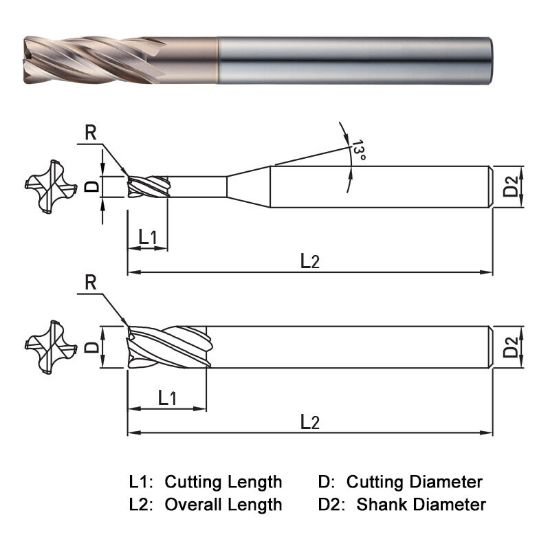

Picture of Widin WXR51410002 Dia 10mm SH 0.3937 LOC 0.5906 OAL2.9528 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0079 0.20mm WINNER

Widin WXR51410002 Dia 10mm SH 0.3937 LOC 0.5906 OAL2.9528 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0079 0.20mm WINNER

Part Number: WIDWXR51410002

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1225983
Vendor: Sussex Tool and Supply
$76.14
WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0079 0.20MM Standard Flute Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 1.1811 30.00MM
