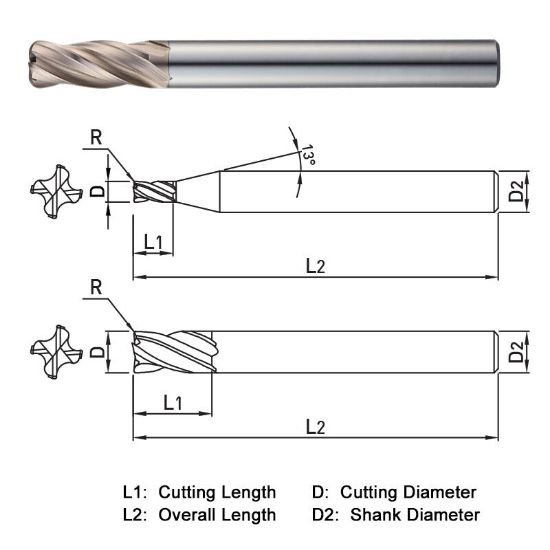

Picture of Widin WXR50404003100S4 Dia 4mm SH 0.1575 LOC 0.3937 OAL3.9370 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Widin WXR50404003100S4 Dia 4mm SH 0.1575 LOC 0.3937 OAL3.9370 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Part Number: WIDWXR50404003100S4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1225551
Vendor: Sussex Tool and Supply
$36.38
WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM Standard Flute Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating ALTIN
Mach Side Connection Size 0.1575 4.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.1575 4.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3937 10.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
