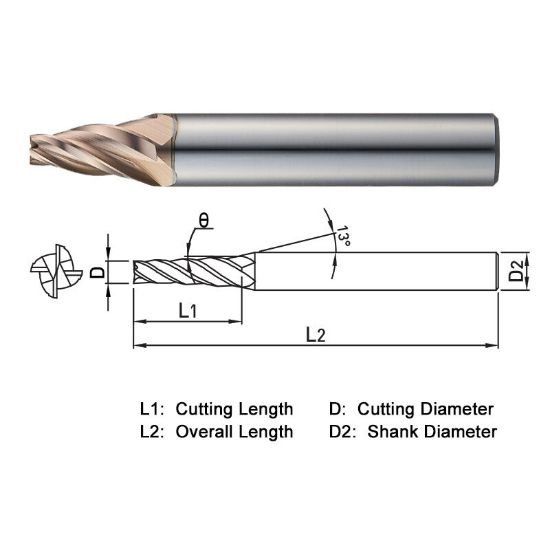

Picture of Widin WTE50408005 Dia 8mm SH 0.6299 LOC 1.7717 OAL3.9370 End Mill Taper Flute Carbide AlTiN Single End Square Sharp WINNER

Widin WTE50408005 Dia 8mm SH 0.6299 LOC 1.7717 OAL3.9370 End Mill Taper Flute Carbide AlTiN Single End Square Sharp WINNER

Part Number: WIDWTE50408005
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1225001
Vendor: Sussex Tool and Supply
$222.29

Description

WIDIN End Mill Carbide AlTiN Square Sharp Taper Flute Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Taper Fllute Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 1.7717 45.00MM
Geometry & Angles
Helix Angle 30
Taper Angle 5.0°
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
