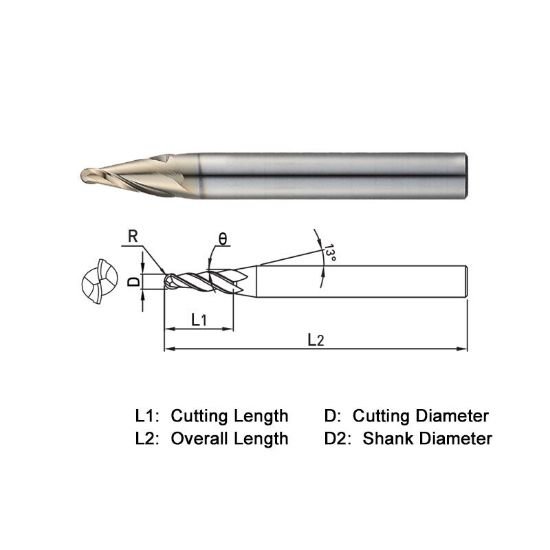

Picture of Widin WTB50200307 Dia 0.30mm SH 0.1575 LOC 0.0591 OAL 1.574 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall WINNER

Widin WTB50200307 Dia 0.30mm SH 0.1575 LOC 0.0591 OAL 1.574 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWTB50200307
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$46.00
SKU: 1224773

Description

WIDIN End Mill Carbide AlTiN Ball Nose Taper Flute 2 Flute Single End WINNER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Taper Flute Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0118 0.30MM
Length Of Cut 0.0590 1.50MM
Geometry & Angles
Helix Angle 30
Taper Angle 7.0°
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
